GT4 1450mm Wing Overview:
After experimenting with several design options to increase the performance of the OEM wing, we quickly realized that the OEM airfoil was never meant to produce a significant amount of downforce but clearly focused on low drag and reducing lift. In order to see a significant increase in performance we needed to create an entirely new wing with a more functional airfoil. After extensive computer testing and modeling, we bring to you our latest design. The DBJ 1450mm curved carbon fiber wing for the Cayman GT4 was designed with convenience in mind. Because it fits the OEM wing stands, the 1450mm wing will also fit all aftermarket wing stands. It only takes 4 bolts to swap and can be done in less than 10 minutes. Measuring the same overall width as the OEM wing, the DBJ 1450mm wing sports a wider 300mm chord length and takes full advantage of the new airfoil to increase downforce. Dependent on the set angle of attack (AOA), you can expect 60-100% increase in downforce over the stock wing. The wing can be set to 6 different angles (1, 3, 5, 6, 8 & 10 deg). When mounted on the OEM wing stand and set to 5 degrees, this wing produces 78lbs of downforce at only 80mph while only adding 15lbs of drag. At 120mph this is 175lbs of downforce! If that isn’t enough for you, pair our 1450mm wing with aftermarket risers such as RSNV risers and see a significant bump in performance! Running the wing just 3″ higher yields roughly 20% increase in downforce (20lbs) and 30% reduction in drag (6lbs). This brings the total output to 100lbs of downforce and 9lbs of increased drag at 80mph which is 2.5 times the production of the OEM rear wing. If you’re looking for great performance and aggressive styling the 1450mm DBJ wing has your back!
Construction:

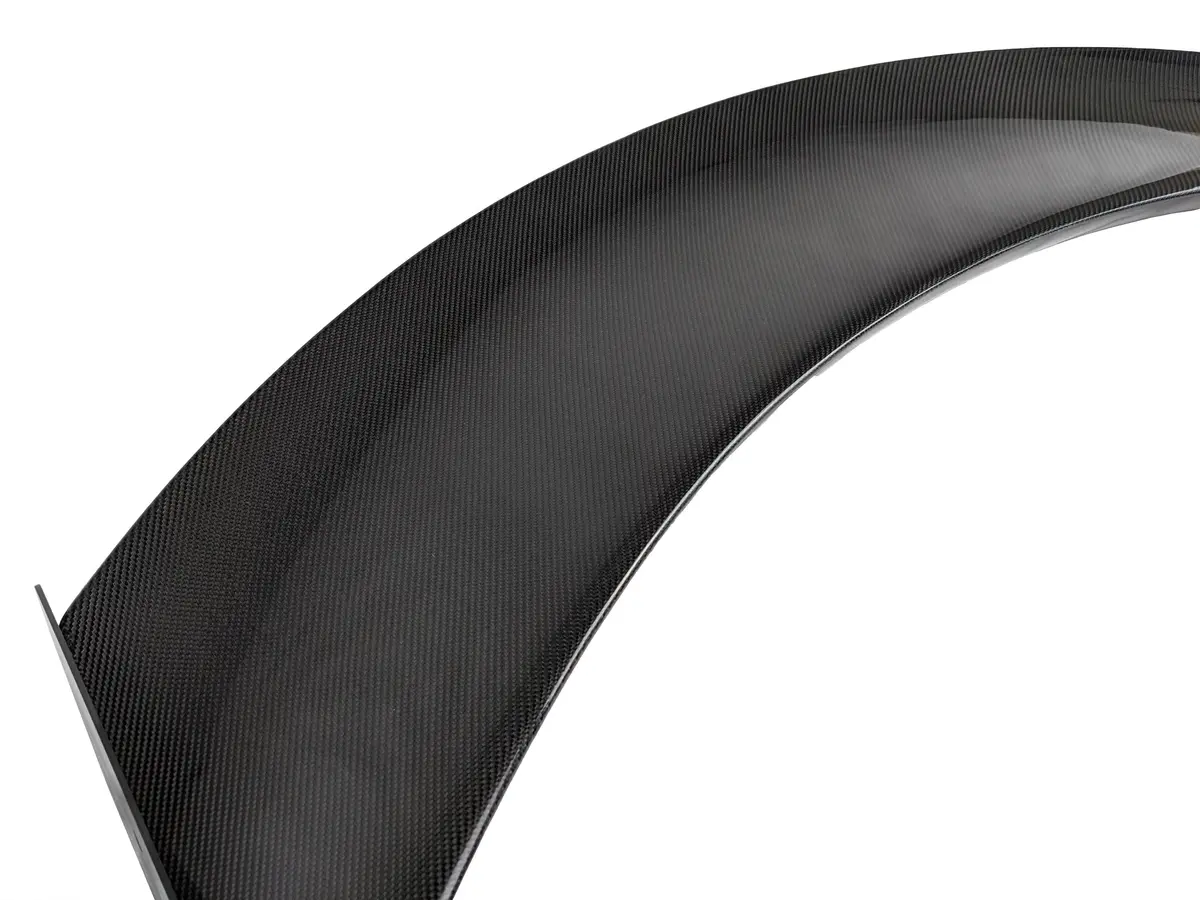

The wing is made from 3mm thick autoclaved carbon fiber ensuring the best quality of strength and stiffness. Powdercoated in matte black, the CNCed aluminum wing mounts mate to the underside curve of the wing to blend in with the airfoil and minimize interruption to flow. The endplates are also constructed from 3mm thick carbon fiber and have counter sunk screws to give a clean flush look.
Performance Data:
Features:
- 3mm thick carbon fiber 2×2 twill glossy finish
- Billet aluminum 6061-T6 wing mounts
- OEM mount fitment for easy installation
- Compatible with all aftermarket risers that accept the OEM wing
- Increases performance when on higher wing stands
- 6 degrees of adjustment for Angle of attack (1,3,5,6,8,10deg)
- CFD tested and road/track proven results
- 78lbs downforce & 20lbs drag @80mph
- 175lbs downforce & 45lbs drag @120mph
- Overall Weight: 10 lbs
- Fits 981 and 718 Cayman GT4 wing mounts
