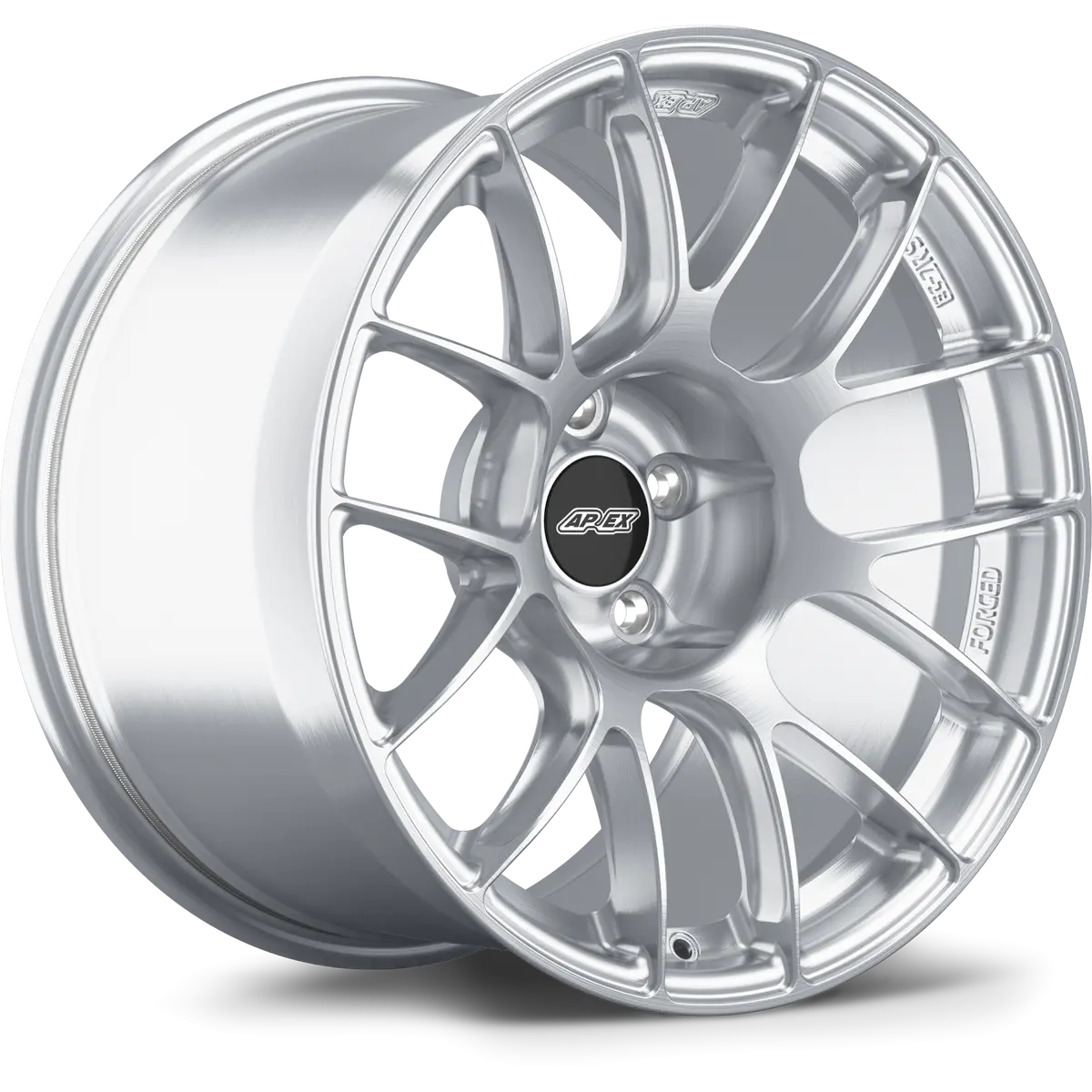

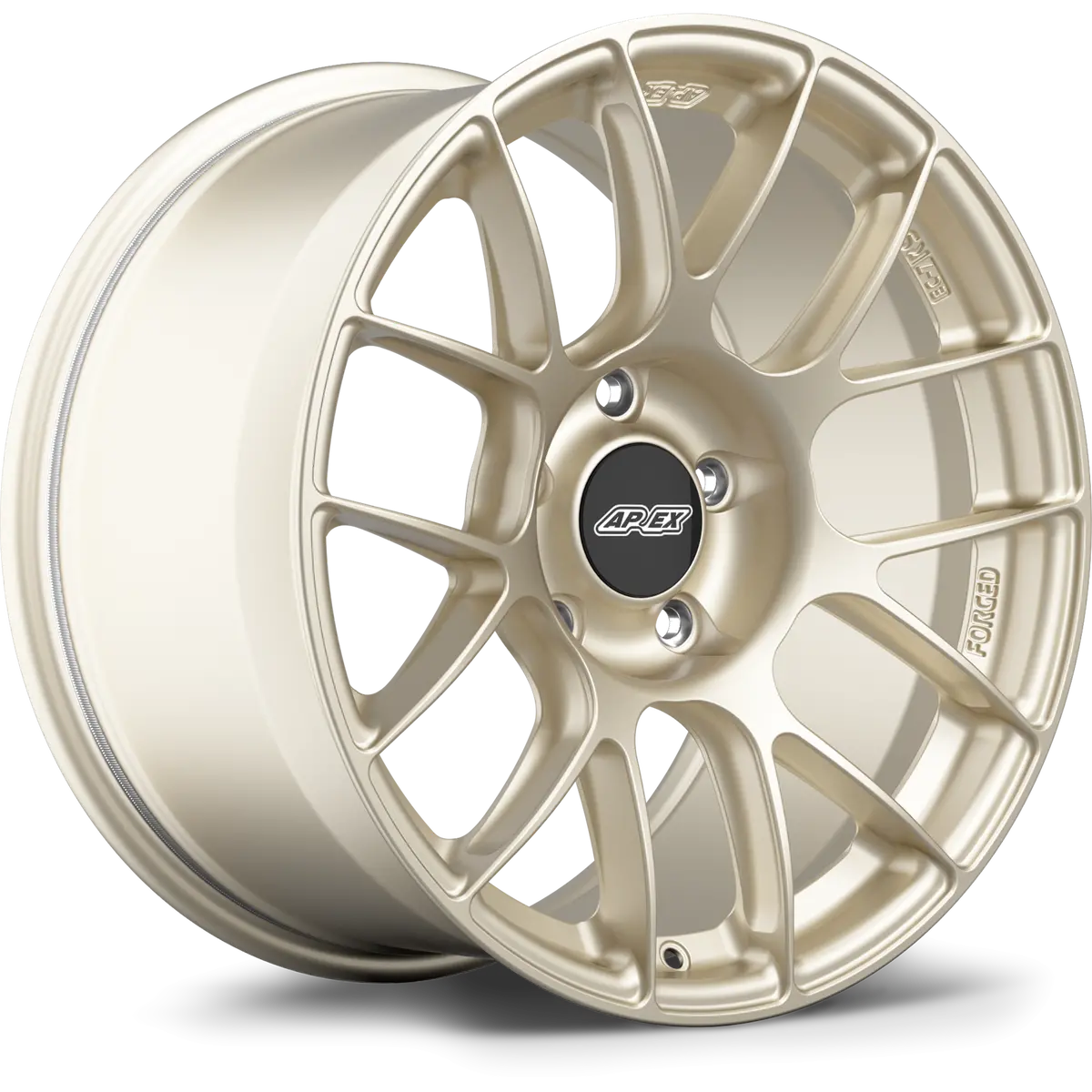

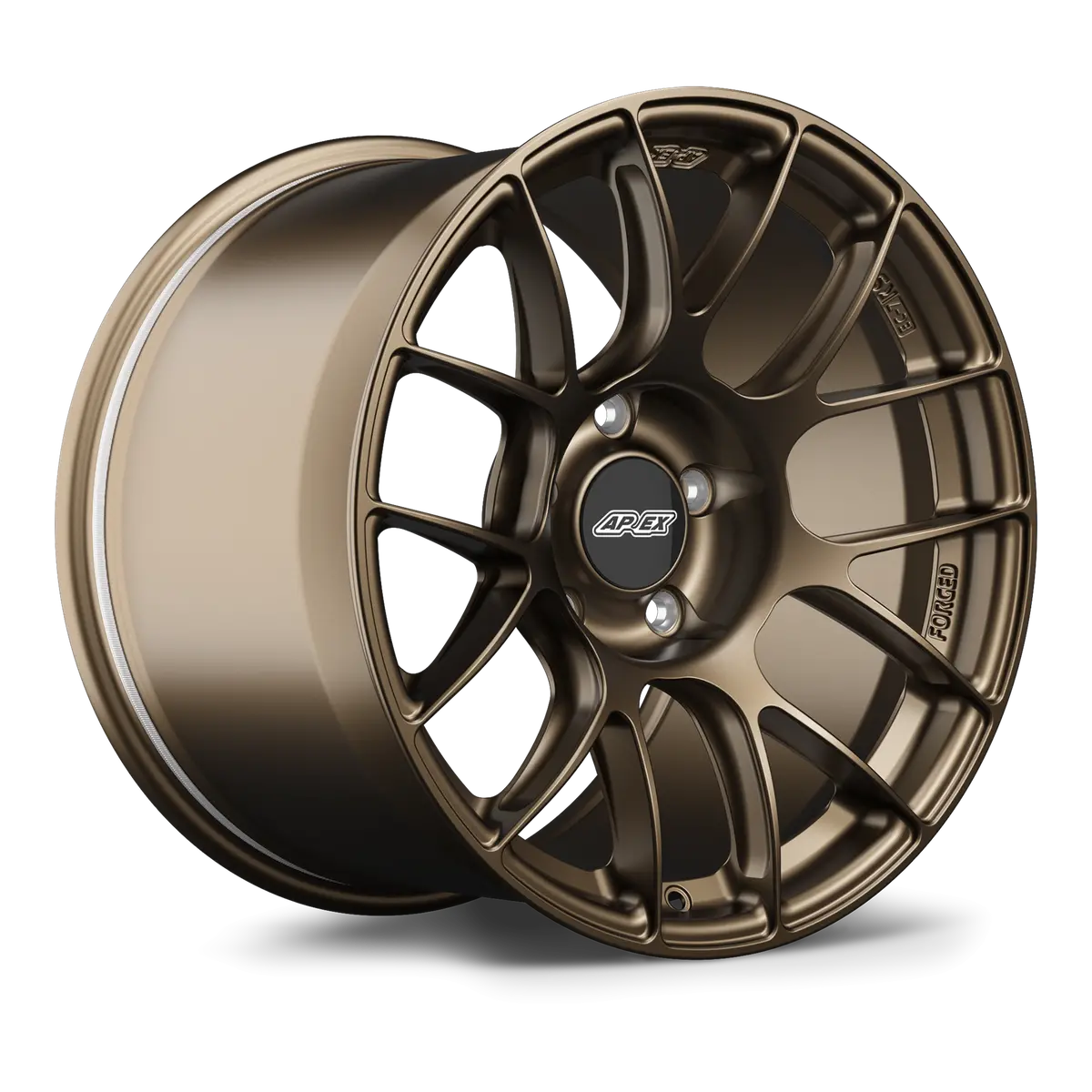

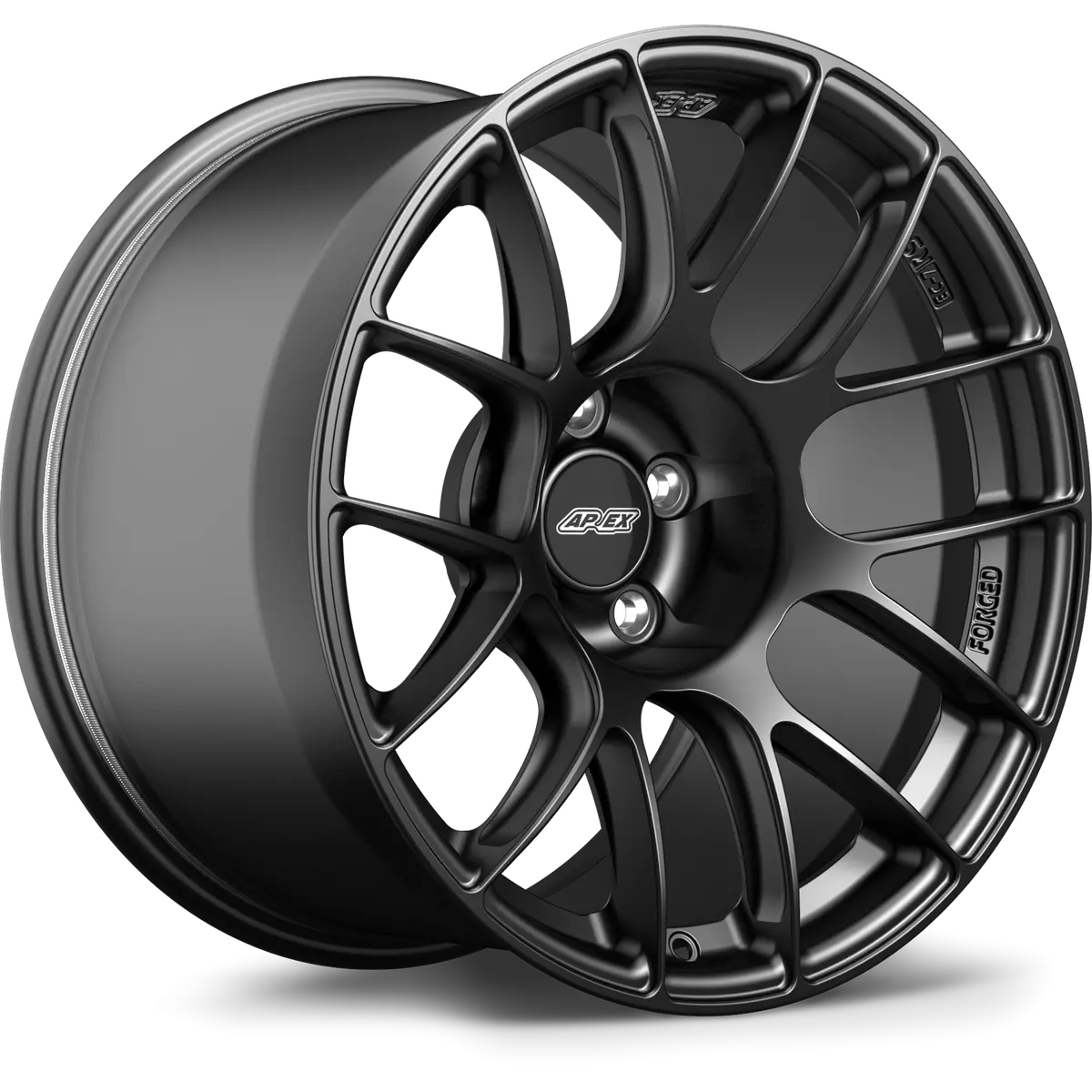

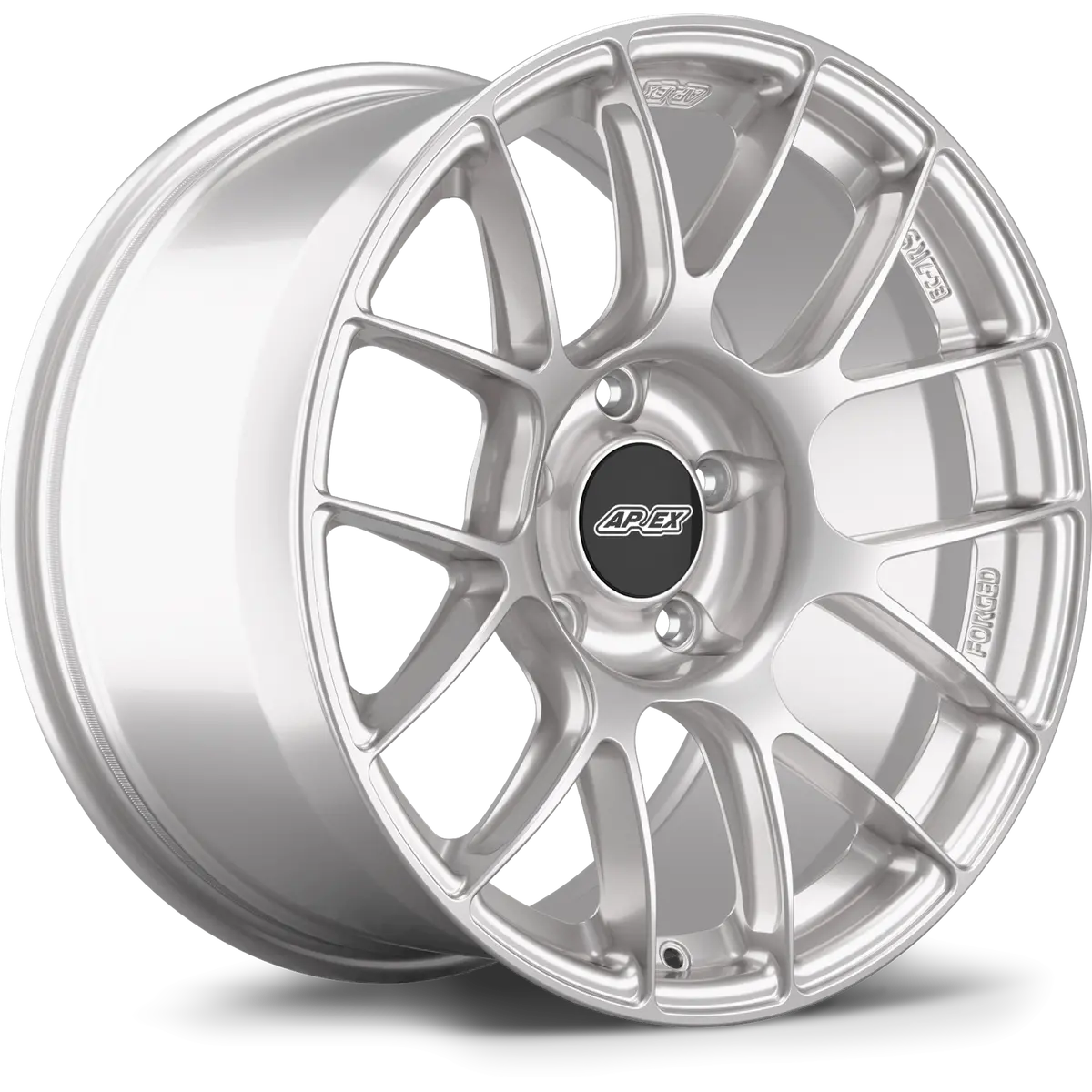

Apex EC7RS Forged Alloy Wheels

Description

Overview:

The Apex EC-7RS is an ultralight forged wheel engineered for high-performance driving. Combining deep concavity with optimized brake clearance, the EC-7RS delivers track-ready capability in a classic design that balances ultra-light weight with exceptional structural strength.

Technical Highlights:

Material & Forging:

• 10K ton forged 6061-T6 aluminum for optimal strength-to-weight ratio.
• Forging eliminates porosity and refines grain structure for superior fatigue resistance.
• Proprietary motorsport blanks allow precise concavity, spoke design, and brake clearance.

Spoke Design:

• Side-milled spokes reduce rotational inertia and maintain bending stiffness.
• CNC ball cutter removes non-structural material for weight reduction.
• Deep concavity tailored to accommodate large brake kits.

Inner Lip & Barrel Engineering:

• Sprint™ spec inner lip adds ~32% more reinforcement than flow-formed equivalents.
• High-clearance barrel ensures brake clearance and improved airflow.
• FEA-informed weight redistribution strengthens critical areas without unnecessary mass.

Weight Optimization & Stiffness:

• FEA used to optimize spoke geometry under bending and torsion loads.
• Nearly 10% stiffer than comparable forged wheels at identical weight.
• Weight: 19.1 lbs | Load rating: 1,600 lbs.

Brake Clearance & Fitment:

• Deep concave profiles optimized using 3D laser scans to maximize brake clearance.

Track & Maintenance Ready:

• Designed for oversized impact sockets (32mm clearance).
• Hub-centric design ensures accurate centering for high-speed stability.
• Compatible with OEM and aftermarket TPMS.
• Laser-engraved barrel specs for quick reference during track or street use.

Aesthetic & Functional Features:

• Paintless knurled bead ensures tire grip during high-load cornering and braking.

Testing & Certification:

• Independently tested by STL Labs above JWL standards.
• Includes extended drop height, longer load duration, and torsional stress testing.

Warranty & Replacement:

• Lifetime structural warranty against defects in workmanship and materials.
• 50% off replacement program for accidental damage, including curb rash or track incidents.
